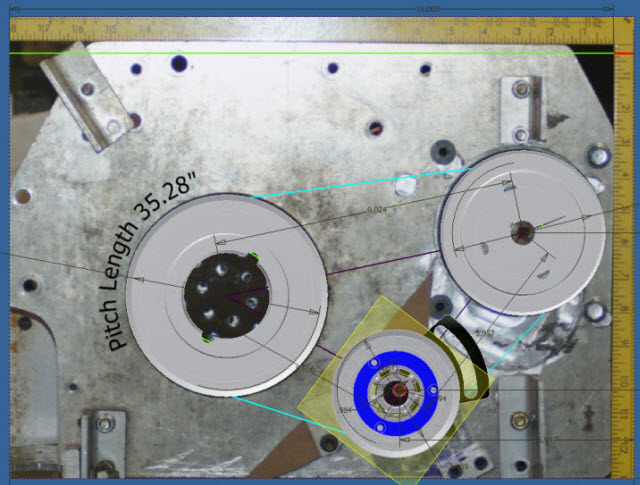

3D Model of Tensioner |
 |
IdlerInventorModels.jpg |
By putting the idler on the inside, it was immune from variations in belt thickness. I reused the original motor drive pulley and machined it to hold a bearing. It was modeled in Inventor to see if it would actually work with the available space for an eccentric. |
