Tachometer Hall

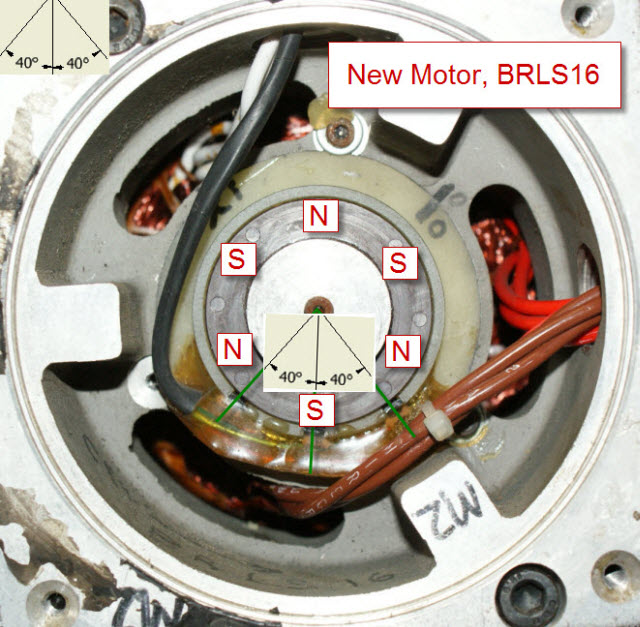

Motor's commutation is via hall sensors set 40 degrees apart. Since the magnet has 3 N/S pole pairs, the 40 deg angle works out to the equivalent of 3 electrical revolutions per 1 mechanical revolution.
